Pump Up Sprayer Pro, 3 Gallon (EPDM Seals)

Lafferty Equipment Manufacturing, LLC

Installation & Operation Instructions

Model # 925025-E · Pump Up Sprayer Pro, 3 Gallon (EPDM Seals)

Requirements

Ready-to-Use Chemical Solution
Temperature up to 120°F
Accepts Compressed Air up to 45 PSI

Options

Repair Kit
O Ring & Seal Repair Kit (Viton)# 709040
O-Ring & Seal Repair Kit (EPDM)# 709040-E
Silicone Lubricant, 5 Gram Tube# 709049
Proportioning / Filling Options
1-Way Ball Valve Mixing Station (4 GPM)# 985100
1-Way Push Lever Mixing Station (4 GPM)# 981100

Weight & Dimensions

Single Package
Shipping Weight9 lbs.
Shipping Dimensions11" x 11" x 32"
925025-E
Lafferty Equipment Logowww.laffertyequipment.com
501-851-2820
Warning! Read All Instructions Before Using Equipment!

Overview

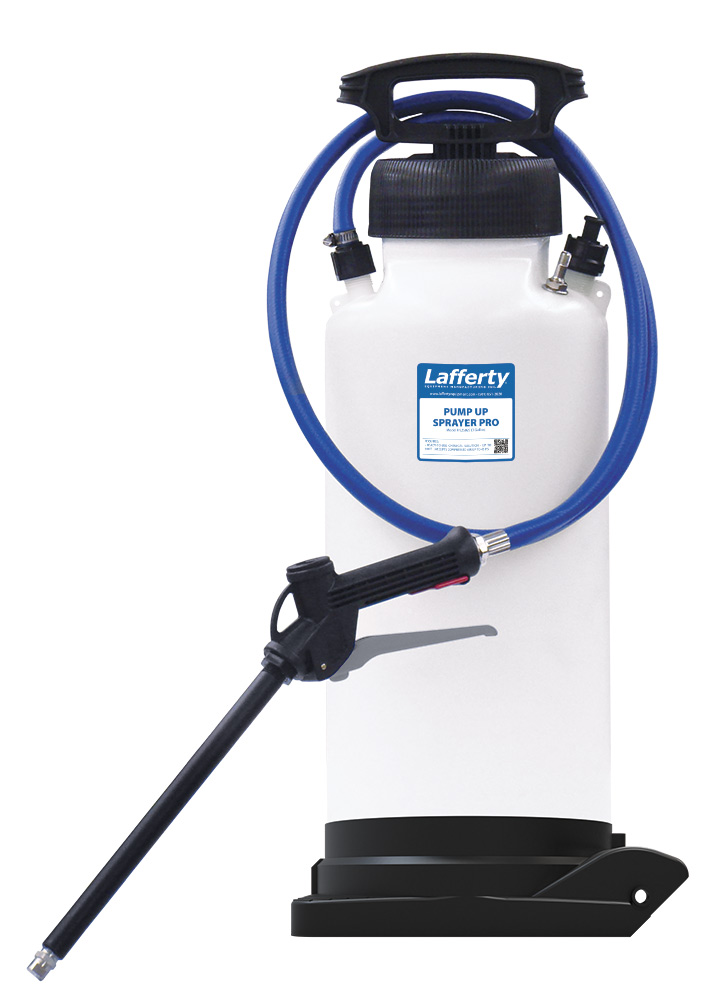

The 3 Gallon Pump-Up Sprayer Pro is a heavy-duty, portable spray applicator for applying ready-to-use chemicals on to any surface. Includes EPDM o-rings and internal seals. This professional model features a more durable 6' hose, trigger gun, wand, and fan nozzle compared to your typical pump-up sprayer. Equipped with a compressed air "quick charge" valve to eliminate pumping if compressed air is available.
Lafferty Equipment Manufacturing, LLC • 8504 Mac Arthur Drive • North Little Rock, Arkansas 72118

Safety & Operational Precautions

  • Manufacturer assumes no liability for the use or misuse of this unit.
  • Wear protective clothing, gloves and eye wear when working with chemicals.
  • Always direct the discharge away from electrical devices and people/animals (as appropriate)
  • Follow the chemical manufacturer's safe handling instructions.
SPECIAL PRECAUTIONS
  • This high density polyethylene unit is fitted with EPDM seals. Chemicals and lubricants not compatible with polyethylene or EPDM should not be used. (Viton seals are available for separate purchase.)
  • Do not alter pressure relief valve or plug valve hole.
  • Regularly lubricate pressure relief valve with a non-water-soluble grease (such as a silicone compound) and ensure proper operation, using water in the tank, prior to each use. Regular lubrication of cap seal and threads with a non-water-soluble grease will help ensure proper sealing of cap.
  • Do not lift or carry by the hose or trigger gun.
  • Securely tighten pump: loose pump can be forcibly ejected.
  • Carefully follow chemical manufacturer's safe handling instructions and recommended precautions/practices when using flammable chemicals. Do not use hot liquids.
  • Do not exceed 45 psi pressure and do not inflate without liquid in the tank
  • Do not fill the tank over 3/4 full. Relieving pressure in an overfill condition can cause harmful venting of contents.
  • Never stand with face or body over the top of tank when loosening pump or relieving pressure.
  • After pumping, be sure the handle is in the locked down position
  • On completion of operation, with the tank in the upright position, relieve pressure in the tank by gently pulling up on the pressure relief valve on the side of the tank.

WARNING

This unit is equipped with a built-in inflation valve and can be pressurized using an air compressor. Extra caution is required when using a compressor, as the unit will be pressurized much more rapidly than when hand-pumping. Failure to follow the following procedure could result in serious injury to the operator or others.
  1. Before each use of a compressor be certain that:
  1. The umbrella valve, located at the bottom of the cylinder, is installed and functioning properly.
  2. The pump assembly is screwed tightly to the tank.
  3. The pressure relief valve is functioning properly. Check by pulling up on the valve until the red stem shows. The valve stem should move freely and spring back to its original position when released.The O-ring and valve stem must be greased.
  4. Check the hose clamp and tighten if loose.
  1. Additional Precautions:
  1. Do not stand over the pump handle while pressurizing with an air compressor or while releasing the handle from the locked position. Compressed air can cause the pump handle to pop up upward if the umbrella valve is worn or damaged or if the pressure relief valve is not functioning.
  2. Do NOT leave the airline attached to the tank during operation.

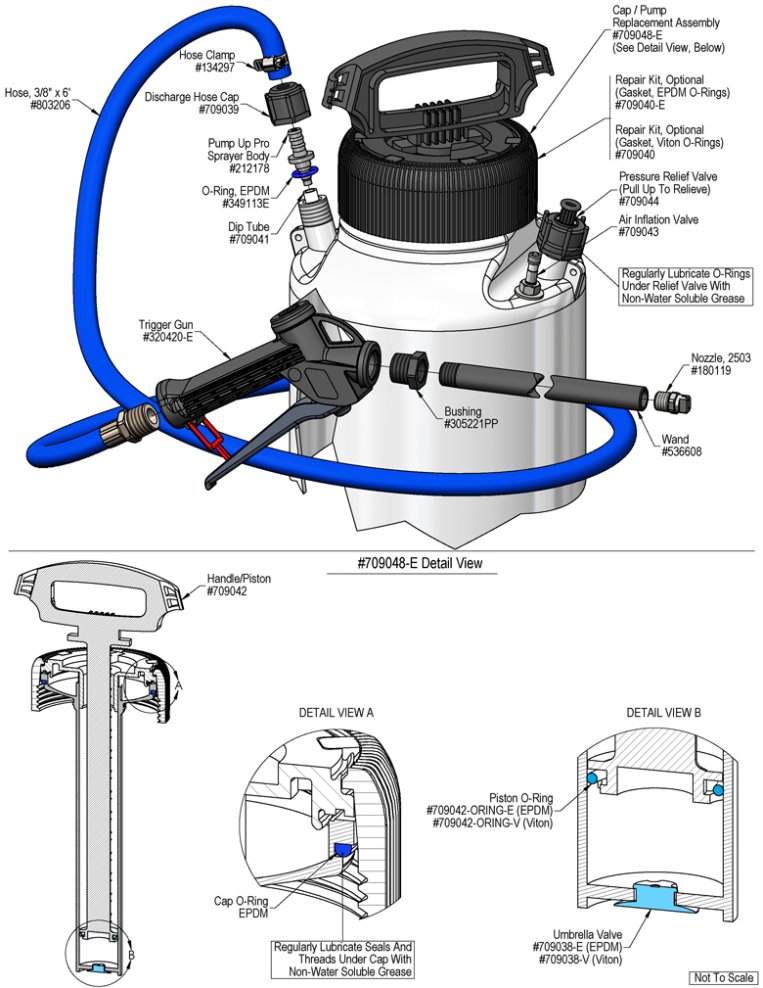

To Install (refer to diagram on next page)

  1. Turn pump lid counterclockwise to remove pump and lid.

NOTE: Do not remove or tighten the lid using the handle.  Rotational force on the handle can cause damage.

  1. Add chemical solution to the tank. Leaving extra "air space" in the tank and less chemical will give longer spraying time between re-pressurizing. DO NOT FILL THE TANK OVER 3/4 FULL (75%) .
  2. Tighten cap and pump for a good seal. Regular lubrication of cap seal and threads will help ensure proper sealing and removal of cap.
    NOTE: It is a good idea to thoroughly rinse out the tank, fill with water, partially re-pressurize, and discharge to flush out the entire hose/nozzle assembly after use and before storing sprayer.  When using aggressive or corrosive chemicals never leave chemical solution in the tank after use.

To Operate

  1. Pump up sprayer manually until the pressure relief valve starts to rise/relieve. Pressurize less if a lighter spray pressure and volume is desired.
  2. Pull the trigger to start and stop spraying. Re-pump up as spray begins to slow down.
  3. On completion of spraying, with the tank in the upright position, relieve pressure in the tank by gently pulling up on the pressure relief valve on the side of the tank.
  4. Prior to every refill of the tank, pull up on relief valve to ensure it is depressurized before removing the lid and pump.
  5. To store: Partially fill the tank with fresh water and pump it up. Pull the trigger and rinse the sprayer out.

WHEN USING AN AIR COMPRESSOR: Place pump handle in the unlocked position and pressurize slowly till the pop-off valve starts to rise. If the pump handle rises...DISCONTINUE PRESSURIZING! Relieve pressure by pulling up on the pressure relief valve, remove pump and check the umbrella valve for wear or damage. Do not pressurize until worn or damaged parts have been replaced and the handle does not rise during pressurization.
Troubleshooting Guide
Problem Possible Cause / Solution
StartupMaintenance
A) Sprayer sputtering
B) No output / unit will not spray
C) Tank will not pressurize and/or hold pressure		1
1 		2
2
2
Possible Cause / Solution
StartupMaintenance
  1. Not enough air pressure
    • Pump up the sprayer several strokes
    • Less liquid in the tank will allow for more air pressure to build and spray for longer
    • The air relief valve will rise when maximum pressure is achieved
  1. Air leaks due to loose lid, worn or damaged components/fittings
    • Ensure lid is snug, but not overtight. Lubricate the lid and pressure relief o-rings. Order repair kit and replace damaged o-rings, gaskets, umbrella valve etc. See page 3 for part numbers
    • Refer to the Pump-Up O-Ring Replacement Guide http://appequip.net/uploads/documents/pump-up-o-ring-replacement.pdf
    • The o-ring on the piston (inside the shaft) creates pressure and should be kept well-lubricated since it is exposed to friction from pumping.  Replace as needed.
    • The umbrella valve on the bottom of the piston shaft holds pressure in the tank and needs to form a tight seal.  Do not scratch the valve seat!  Replace as needed.
    • Ensure that your chemical and lubricant are compatible with the o-ring seals for this equipment.  Incompatible chemicals or lubricants can quickly degrade the o-rings.
PREVENTIVE MAINTENANCE: * Prior to storage, empty, clean and dry the foamer. * Lubricate o-ring in pressure relief valve and the piston/cylinder with a compatible non-water soluble grease (such as a silicone lubricant) on a regular basis. * Lubricate tank cap threads and both sides of the gasket to achieve a tight seal and to ease tightening and loosening. * Replace cracked or damaged seals before use.
