491648 | Installation & Operation Instructions

Lafferty Equipment Manufacturing, LLC

Installation & Operation Instructions

Model # 491648 · Drum Stick, 48" (Viton)

Specifications

Hose Barbs Included

3/4" x 1/4"

3/4" x 3/8"

3/4" x 1/2"

3/4" x 3/4"

Drum/Tote Stick ID

3/4"

DRUM/TOTE DEPTH SELECTION GUIDE
Model Description	Max. Drum Inside Depth*	Max. Tote Inside Depth*
Drum/Tote Stick, 33"	35 in. / 0.89 m	36 in. / 0.91 m
Drum/Tote Stick, 48"	50 in. / 1.27 m	51 in. / 1.29 m
Drum/Tote Stick, 54"	56 in. / 1.42 m	57 in. / 1.45 m

*Select a model based on drum/tote inside depth. At the inside depths indicated, the strainer will touch or nearly touch the bottom of the drum or tote.

Options

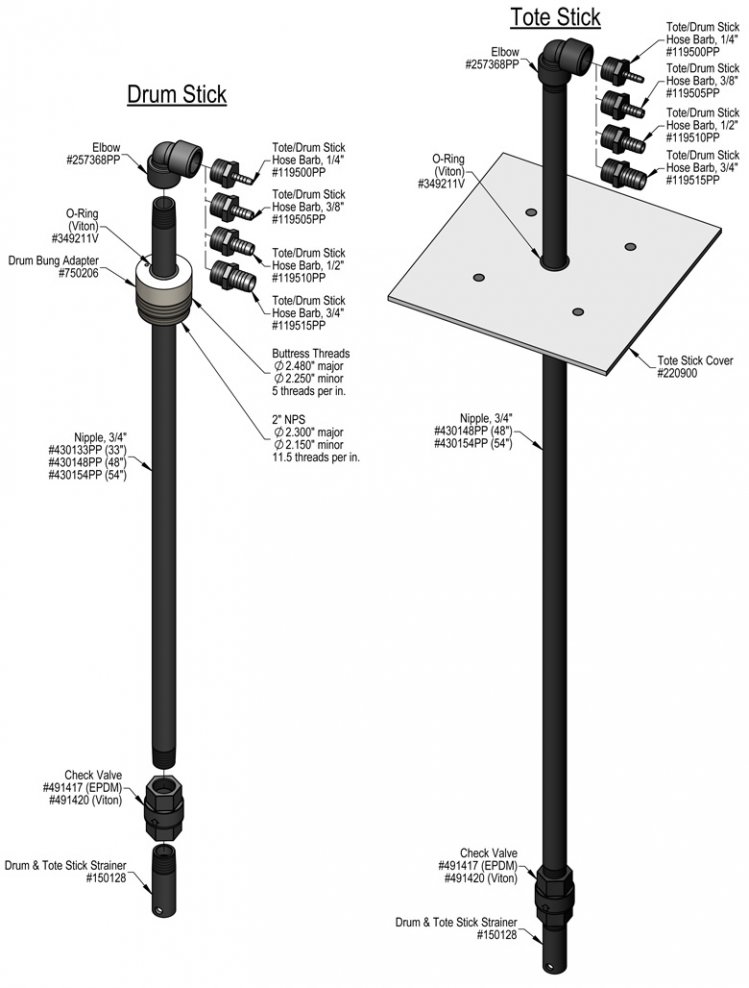

Drum & Tote Stick Lengths & Seal Materials
Drum Stick, 33" (Viton or EPDM)	# 491643 / 491643-E
Drum Stick, 48" (Viton or EPDM)	# 491648 / 491648-E
Drum Stick, 54" (Viton or EPDM)	# 491645 / 491645-E
Tote Stick, 33" (Viton or EPDM)	# 491653 / 491653-E
Tote Stick, 48" (Viton or EPDM)	# 491654 / 491654-E
Tote Stick, 54" (Viton or EPDM)	# 491656 / 491656-E

www.laffertyequipment.com
501-851-2820

Warning! Read All Instructions Before Using Equipment!

Overview

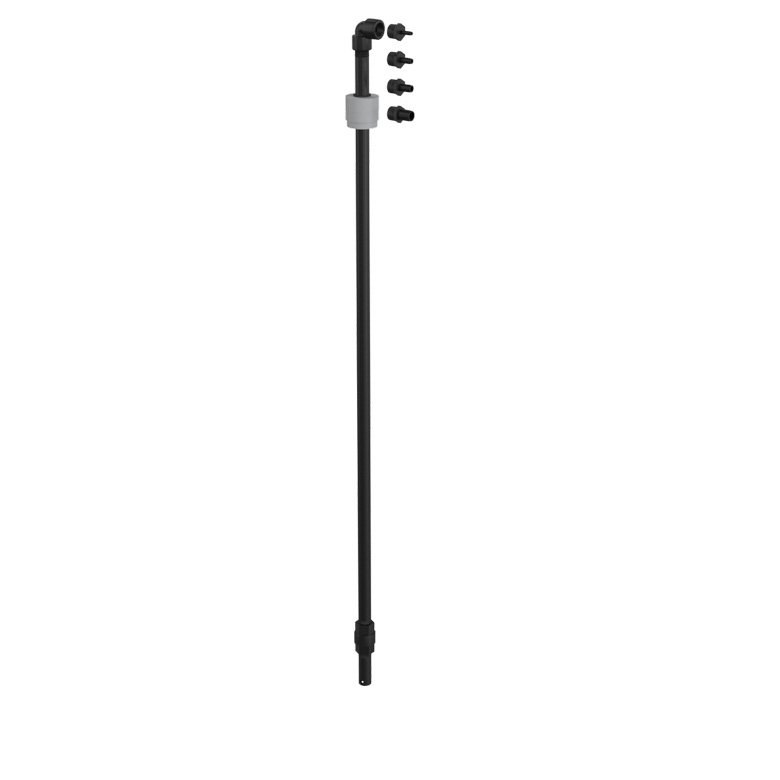

Drum Sticks and Tote Sticks are chemical pick-up assemblies for use with pump operated or venturi systems to draw chemical concentrates or diluted chemical solution directly from a drum, tote or holding tank. Comes complete with a Hastelloy chemical strainer, polypropylene chemical check valve (with a choice of EPDM or Viton seals) and a selection of polypropylene hose barbs to connect to the most common sizes of hose or tube. Standard lengths fit common drum/tote depths. Custom lengths available upon request.

Safety & Operational Precautions

This page intentionally left blank.

PREVENTIVE MAINTENANCE: When the unit will be out of service for extended periods, place chemical tube(s) in water and flush the chemical out of the unit to help prevent chemical from drying out and causing build-up. Periodically check and clean chemical strainer and replace if missing.
