Ready-to-Use Chemical Solution | |
Temperature | up to 120°F |
Accepts Compressed Air | up to 45 PSI |
Requirements
Ready-to-Use Chemical Solution | |
Temperature | up to 120°F |
Accepts Compressed Air | up to 45 PSI |
Overview
Safety & Operational Precautions

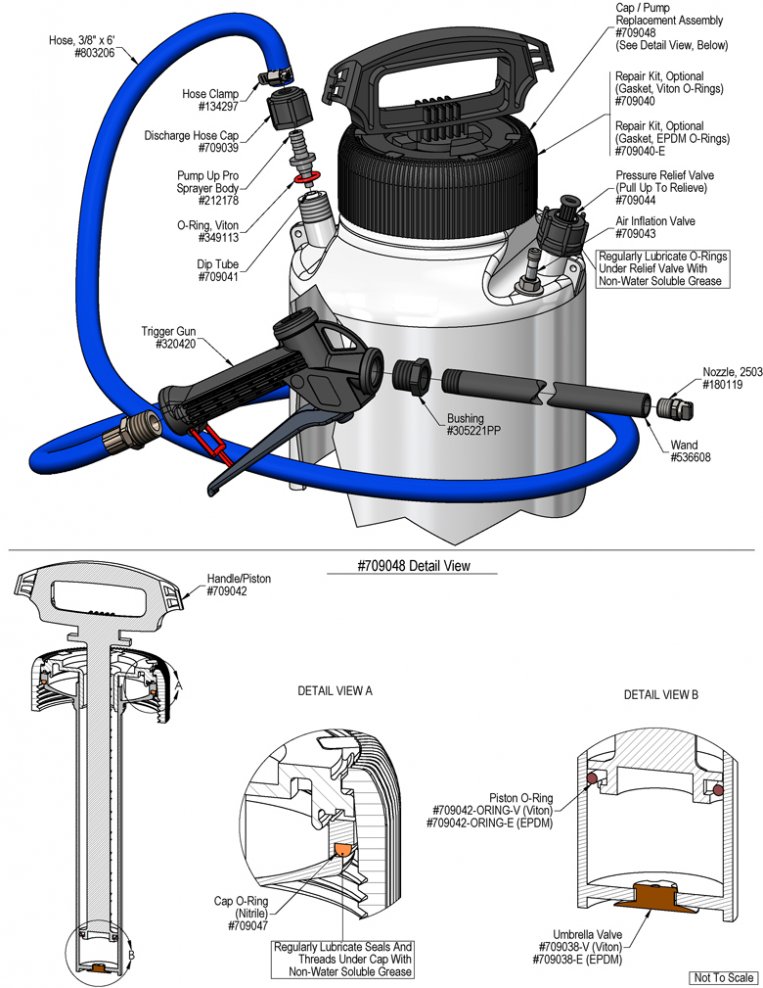

To Install (refer to diagram on next page)
NOTE: Do not remove or tighten the lid using the handle. Rotational force on the handle can cause damage.
To Operate
Troubleshooting Guide |
---|
Problem | Possible Cause / Solution | |
---|---|---|
Startup | Maintenance | |
A) Sprayer sputtering B) No output / unit will not spray C) Tank will not pressurize and/or hold pressure | 1 1 |
2 2 2 |
Possible Cause / Solution | |
---|---|
Startup | Maintenance |
|
|
PREVENTIVE MAINTENANCE: * Prior to storage, empty, clean and dry the foamer. * Lubricate o-ring in pressure relief valve and the piston/cylinder with a compatible non-water soluble grease (such as a silicone lubricant) on a regular basis. * Lubricate tank cap threads and both sides of the gasket to achieve a tight seal and to ease tightening and loosening. * Replace cracked or damaged seals before use. |
