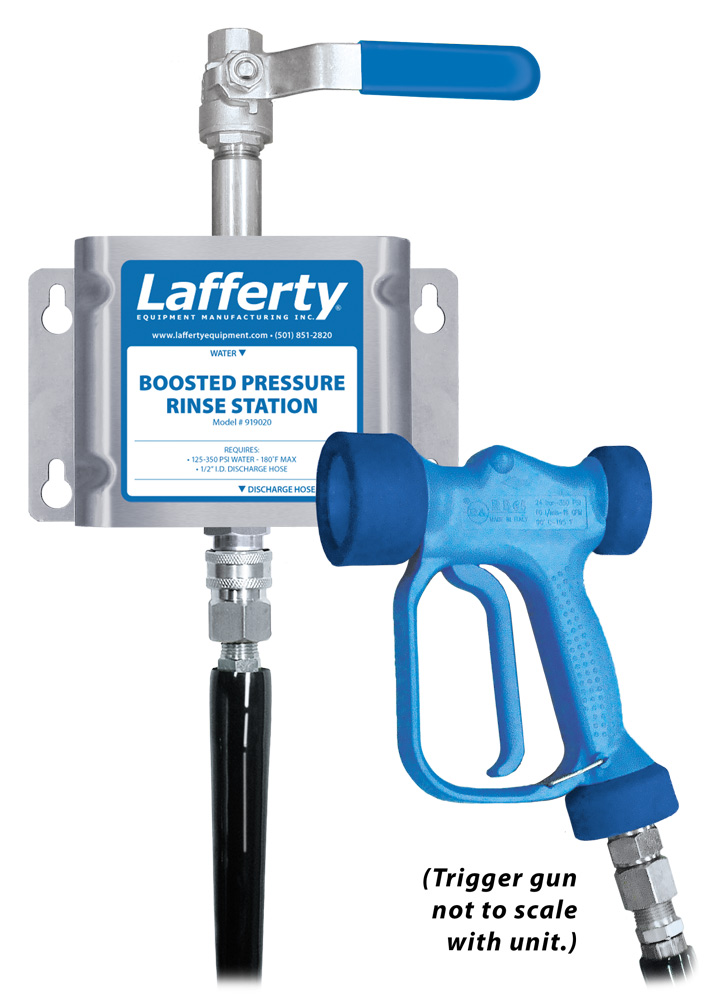

Boosted Pressure Rinse Station

Lafferty Equipment Manufacturing, LLC

Installation & Operation Instructions

Model # 919020 · Boosted Pressure Rinse Station

Requirements

Water
Temperature up to 180°F
Pressure 125 to 350 PSI
Flow 13.4 GPM @ 250 PSI

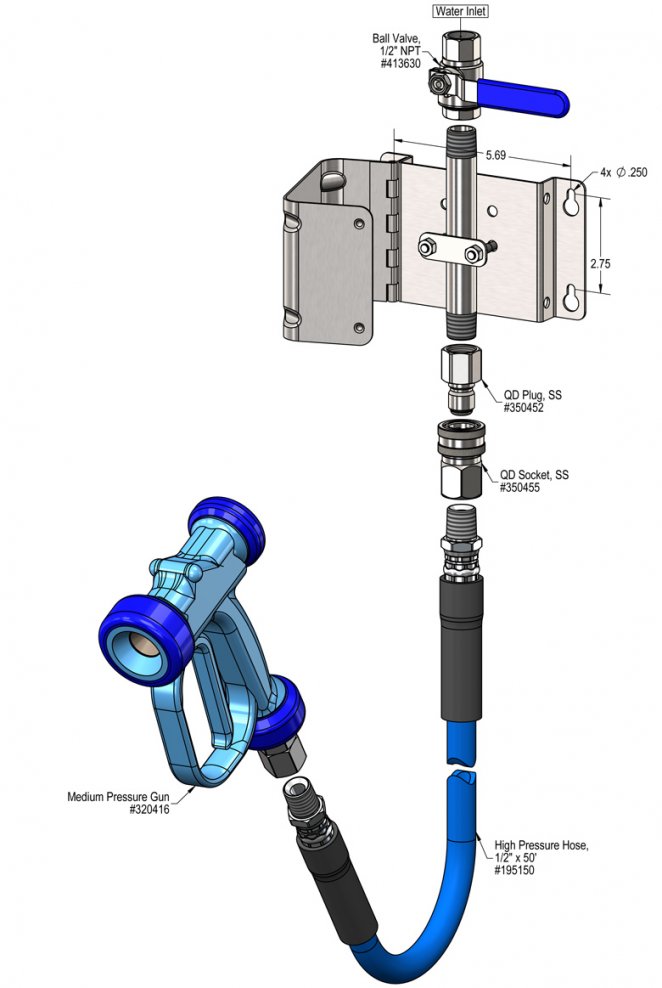

Supply Line 3/4"
Hose 1/2" ID x 50'
Nozzle Trigger Gun, 1/2''

Options

Stainless Steel Hose Racks
Large Stainless Steel Hose Rack# 224150

Weight & Dimensions

Single Package
Shipping Weight25 lbs.
Shipping Dimensions28" x 19" x 8"
919020
Lafferty Equipment Logowww.laffertyequipment.com
501-851-2820
Warning! Read All Instructions Before Using Equipment!

Overview

The Boosted Pressure Rinse Station is designed for both pre-clean and post-clean rinsing of a variety of surfaces in and around food and beverage plants that are equipped with central boosted (medium) pressure water systems. Constructed with stainless steel components, this Rinse Station connects to 125 - 350 PSI water and projects it through the adjustable spray pattern trigger gun.
Lafferty Equipment Manufacturing, LLC • 8504 Mac Arthur Drive • North Little Rock, Arkansas 72118

Unit Flow Rates

PSIGPM
1259.49
15010.40
20012.01
25013.43
30014.71
35015.89
PREVENTIVE MAINTENANCE: When the unit will be out of service for extended periods, place chemical tube(s) in water and flush the chemical out of the unit to help prevent chemical from drying out and causing build-up. Periodically check and clean chemical strainer and replace if missing.
