Fogger PLC Jazz Controller - 180 CFM

Lafferty Equipment Manufacturing, LLC

Installation & Operation Instructions

Model # 950830 · Fogger PLC Jazz Controller - 180 CFM

Requirements

Electric 120V / 2 Amps
Compressed Air Up to 180 CFM
950830
Lafferty Equipment Logowww.laffertyequipment.com
501-851-2820
Warning! Read All Instructions Before Using Equipment!

Overview

This control box is equipped with a 1/2" solenoid and a Jazz Satellite Controller. When the solenoid is triggered by the controller it activates the units that it is attached to. The Jazz Satellite Controller has highly flexible programming settings that can be used to regulate the operation of multiple foggers on a 24/7/365 basis.

• NOTE: The total air CFM requirement of all the foggers connected to this controller must be less than 180 CFM, which is the air CFM capacity of the controller's 1/2 inch solenoid. (For a higher capacity of up to 460 CFM see controller model #950832.)

Lafferty Equipment Manufacturing, LLC • 8504 Mac Arthur Drive • North Little Rock, Arkansas 72118

Safety & Operational Precautions

  • See Additional Safety Precautions included with the Electrical Control Box Installation Information
  • Always consider electrical shock hazard when working with and handling electrical equipment. If uncertain, consult an Electrician. Electrical wiring should only be done by a qualified Electrician, per Local and State Electrical Codes.
  • Manufacturer assumes no liability for the use or misuse of this unit.
  • Wear proper respiratory protection, protective clothing, gloves and eye-wear when working with chemicals.
  • Always direct the discharge away from electrical devices.
  • Carefully follow chemical manufacturer's safe handling instructions and recommended precautions/practices especially when using flammable chemicals.
  • For proper performance do NOT modify electrical control box.
  • Disconnect electrical power to the control box prior to opening it.
  • Remove any packing material from inside the control box before operating.
  • SPECIAL CAUTION: This fogger atomizes chemical into the air.  Ensure that the chemical is safe to be around or the area to be fogged has been evacuated of all people and/or animals before starting fogging. Upon completion of fogging, ensure that sufficient time has elapsed for all the fog to have dissipated before returning to the area without proper respiratory protection.

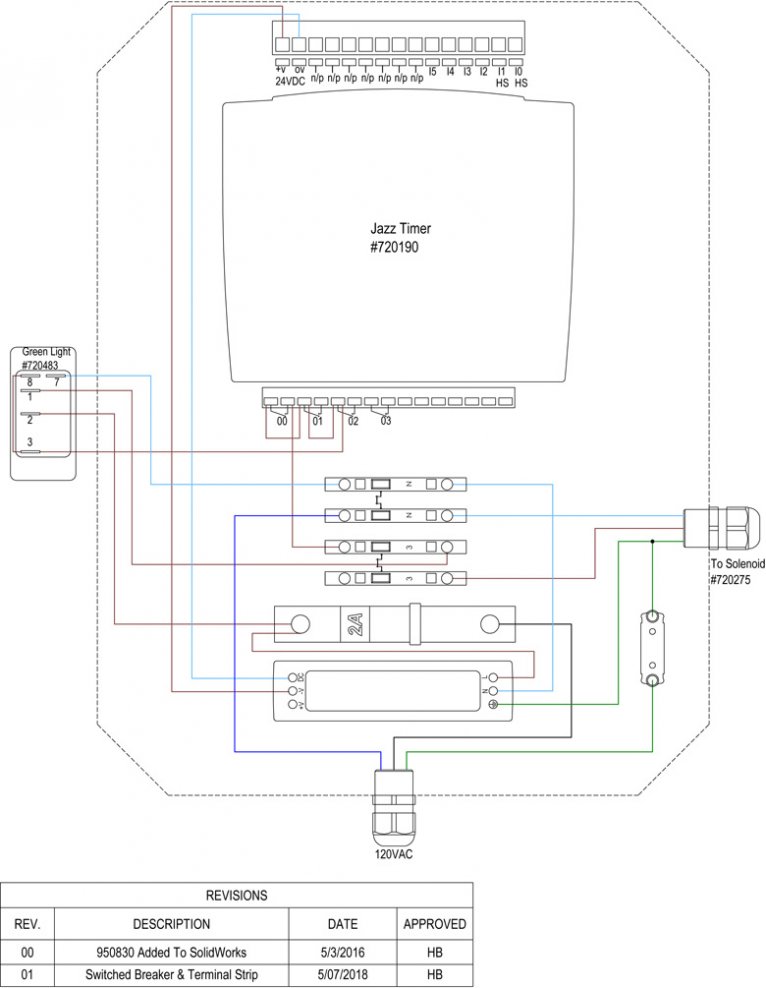

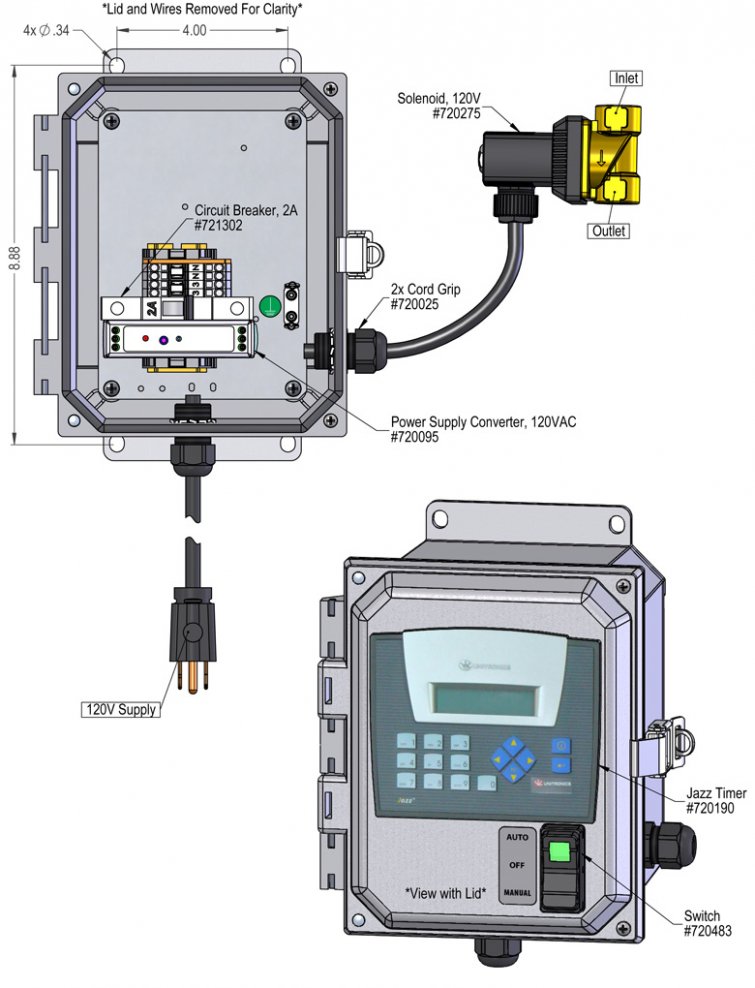

To Install (refer to diagram on next page)

  1. Mount the control box to a secure surface. It may be mounted vertically, on a wall, post or other vertical surface, or horizontally on a flat surface. Commercially available mounting hardware (not provided), appropriate to the surface material of construction, should be used to secure the control box to the surface. Mounting holes are located at the four corners of the base of the control box.
  2. Do NOT connect to electricity yet.
  3. Connect your compressed air to the 1/2" solenoid in the direction of the arrow and connect the discharge to piping leading to the fogger head(s)

To Operate

JAZZ CONTROLLER SET-UP.

Follow the separate "Program Settings Instructions" for the Jazz Controller.
This unit requires 120V electrical supply. GFI recommended.

SWITCH SETTINGS (On front of Control Box)

Automatic control (AUTO) – Top of switch is depressed. Green light glows. The unit will function according to the Jazz programmed settings.
OFF – Switch is in middle position; green light is off
Momentary control (MANUAL) – Press bottom of switch. Unit is active only while switch is pressed. When released, the switch returns to the OFF position.
