The FPS Fogger Chemical Feed System is a compressed air driven system that will deliver neat or pre-diluted chemical solution to Pump Fed Foggers at the appropriate pressure.

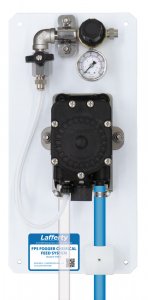

FPS Fogger Chemical Feed System
Model # 919045
Overview
_w919045.jpg&sizex=600&sizey=350&quality=100)
Key Features
- Delivers chemical to Pump Fed Foggers at 20 PSI
- Pumps chemical concentrate or ready-to-use solution
- Use this system in conjunction with a Level Master to ensure a constant supply of RTU chemical solution
- Requires only compressed air to operate for quick, easy set up
- Output volume depends on the air pressure supplied to the pump
- Pump is mounted on a unique quick-release, stainless steel bracket to easily replace pumps
- Chemical resistant wetted components ensure years of outstanding performance with minimal maintenance
- Foggers can be activated manually or via a timed controller setup (see options)
- View Pump Fed Foggers in Catalog 7
- Lafferty offers several online Fogger Planning Tools
Includes
- Polypropylene mounting panel
- Air regulator and air pressure gauge
- FloJet AODD Pump with Santoprene diaphragms
- Stainless steel quick release bracket
- 15' chemical pickup tube with strainer
- 10' x 1/2" discharge hose with MPT fitting (to connect to facility plumbing)
Requirements / Specifications
| Chemical Concentrate or RTU Solution |
| Compressed Air | up to 4 CFM |
| 80 PSI air in | 20 PSI solution out @ 4.25 GPM |
| 60 PSI air in | 20 PSI solution out @ 3.5 GPM |
